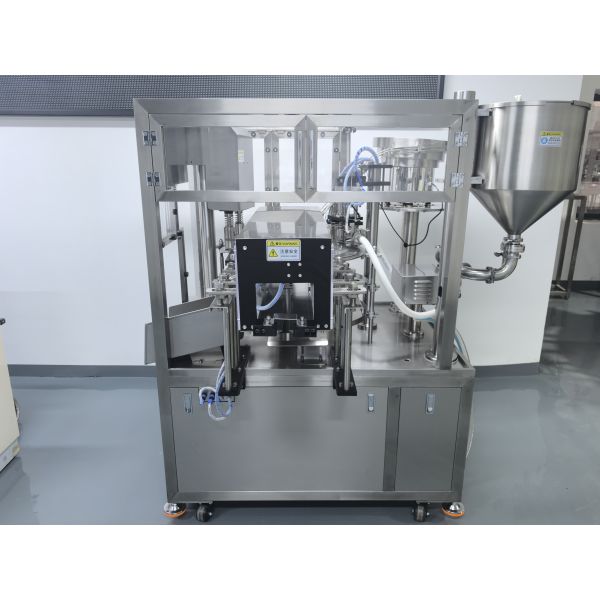

Dual-head Fully Automatic Nozzle-type Filling Sealing and Labeling Machine for Plastic Bagged Liquids Pastes Easy to Operate
A double-head spout pouch capping machine is an automated device specifically designed for spout pouch (stand-up pouch) packaging, commonly used in the food, daily chemical, and pharmaceutical industries. This type of equipment typically integrates filling and capping functions into one unit, with the following main features:
1. Double-head design: Usually equipped with two filling heads, significantly increasing the number of pouches filled per unit time compared to single-head equipment, resulting in higher production efficiency.
2. Integrated operation: The equipment integrates multiple processes such as automatic bag feeding, quantitative filling, automatic capping, capping, and bag dispensing, enabling continuous production.
3. Wide applicability: By changing some molds or adjusting parameters, it can be adapted to spout pouches of different specifications and sizes and different types of materials.
4. Material safety: The machine body and parts in contact with materials are mostly made of food-grade materials such as 304 stainless steel, which meet food hygiene standards, are corrosion-resistant, and easy to clean.
Working Principle: The equipment is mainly controlled by a PLC control system, using a turntable or conveyor belt to move the spout pouches sequentially through each workstation. The basic workflow is as follows:
1. Bag Loading: Bags are typically placed manually onto the machine track or clamps. The equipment automatically secures the bag opening and conveys it to the filling station.
2. Filling: The filling head inserts into the bag to fill a measured quantity. The system has a "no bag, no filling" detection function to prevent material waste.
3. Capping: The equipment automatically picks up caps from the cap bin and accurately places them on the bag opening.
4. Capping: The capping head tightens the cap with a set torque. The capping force is usually adjustable, ensuring a tight seal without damaging the cap or bag opening due to excessive tightening. Some equipment has a "slippage" function to ensure proper cap tightness.
5. Bag Discharging: The finished bags, after filling and capping, are automatically conveyed to the next process.
Applicable Materials and Industries
This equipment has a wide range of applications, suitable for various fluids from low to high viscosity, specifically:
1. Food Industry: Suckable jelly, yogurt, soy milk, fruit juice, honey, jam, ketchup, edible oil, condiments, etc.
2. Daily Chemical Industry: Laundry detergent, hand soap, shampoo, shower gel, detergent, fabric softener, etc.
3. Other Industries: Cosmetic lotions, face creams, medicinal liquids, cleaning agents, disinfectants, etc.
| Model |
Automatic 2-Head Spout Pouch Filling & Capping Integrated Machine |
| Packaging Product |
Liquid, Paste |
| Filling Range |
30ML-2000ML
|
| Hopper Capacity |
50L (Material contact parts: 304 stainless steel) |
| Angled Spout Pouch Size |
Width: 60-240, Height: 60-300 (mm) |
| Production Speed |
25-35 bags/min (Speed depends on product volume, viscosity, and packaging material consistency) |
| Net Weight (approx.) |
260kg |
| Machine Dimensions (mm) |
Approx. L1700 × W1300 × H1700 |
| Working Principle |
Manual bag loading → Automatic bag feeding → Automatic filling → Automatic cap placing → Automatic capping → Automatic bag discharging |
